The REV Mini Power Module (MPM) is a compact power distribution module that allows you to securely and quickly power peripheral devices to your robot. Need more low-current channels on your PDH? Wire the MPM to one of the high-current channels on the PDH to power more peripheral devices and custom circuits.

Features

  • 6 Output Channels
    • Individual Channel Current Rating: 15A
    • Total Device Current Rating: 40A
    • Supports ATM size fuses
  • Tool-less and color-coded WAGO terminals for all main connections
    • Main power input - latching WAGO 2606 series
    • Output channels - push button WAGO 250 series
  • Channel Status LEDs
    • Channel status LEDs for Fuse-Tripped/no Fuse feedback
    • Power On status LED

Specifications

  • Input Voltage (nominal): 12V
  • Mounting Holes: #10 Clearance (0.197in/5mm) on 0.5in pitch
  • Physical Specifications:
    • Length: 3.375in
    • Width: 1.875in
    • Height: 1.18in
    • Weight: 18g (0.04lbs)

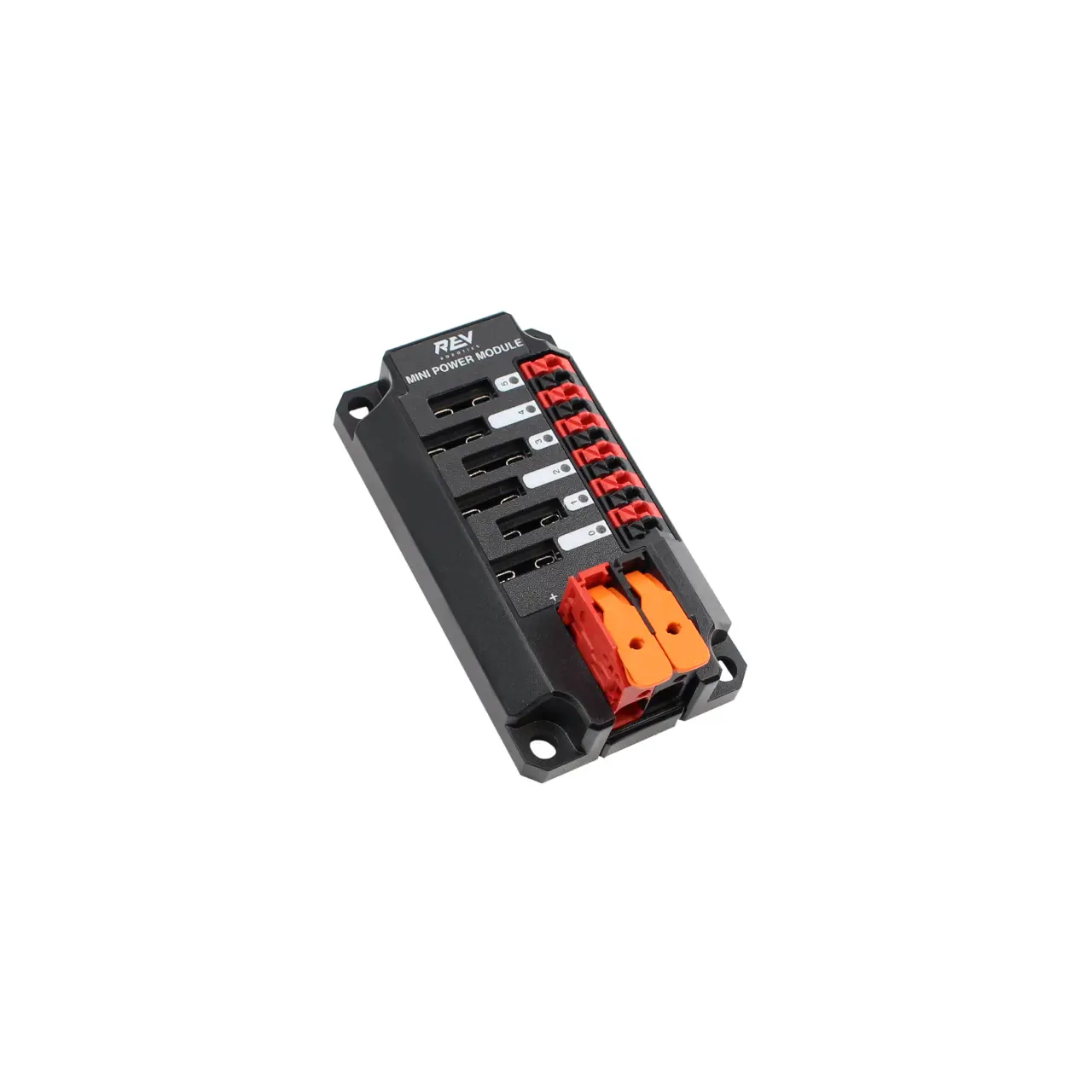

Mini Power Module

מק"ט: REV-11-1956
250.00 ₪מחיר
כולל מע״מ
לא במלאי
